Expert Analogy: Mapping Refrigeration Components to a Baseball Diamond

Core Concept: Benjamin Weser, Manager of Educational Services at Copeland, uses a baseball diamond analogy to explain refrigeration system fundamentals:

1. Compressor = Home Plate→ Receives low-pressure (LP), low-temperature (LT) superheated vapor→ Discharges high-pressure (HP), high-temperature (HT) vapor(Mechanically compresses refrigerant, reducing volume & raising temperature)

2. Condenser = First Base→ Receives hot, pressurized gas from compressor→ Rejects heat to achieve condensing temperature→ Outputs sub-cooled liquid(Gas typically enters top → Liquid exits bottom due to density difference)

3. Metering Device = Second Base→ Regulates refrigerant flow based on cooling load→ Creates pressure drop→ Measures superheat & maintains evaporator temperature

4. Evaporator = Third Base→ Absorbs heat while refrigerant boils off/vaporizes at saturation temperature through metal coils→ Returns LP superheated vapor to compressor




Key Insight:

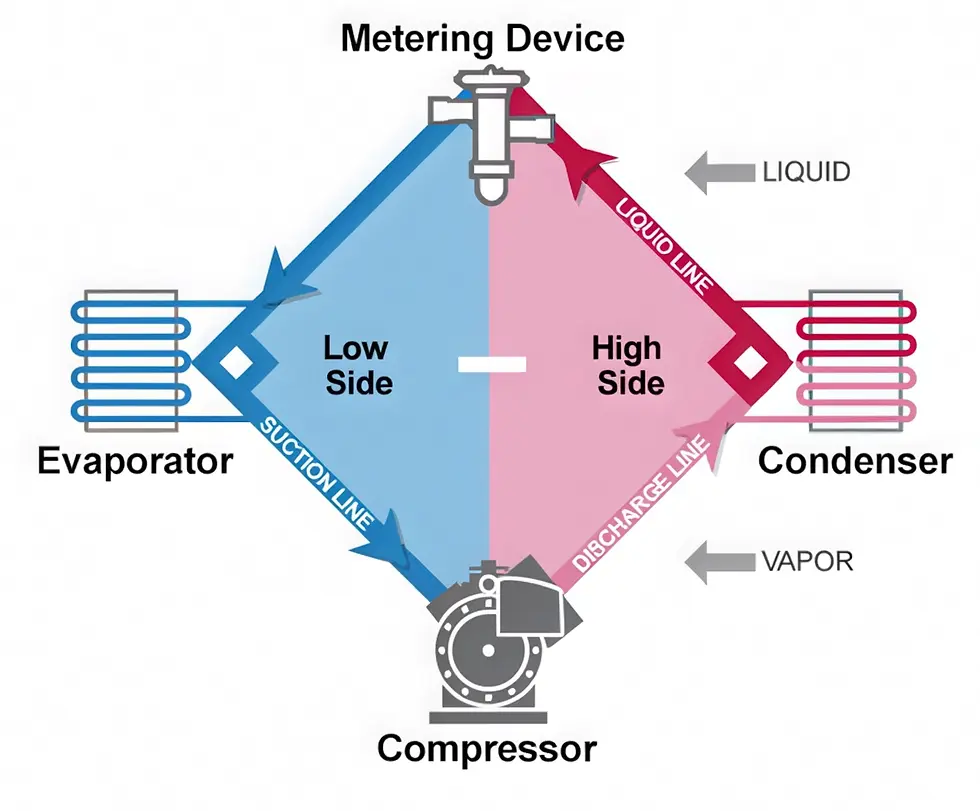

"Draw a vertical line from Home Plate (compressor) to Second Base (metering device):- RIGHT SIDE (Compressor→Condenser): HIGH-PRESSURE (HP) ZONE- LEFT SIDE (Metering Device→Evaporator): LOW-PRESSURE (LP) ZONE"
